Cashew Nut Shell Liquid Distillation

Are you Struggling with a Low and Inconsistent Vacuum?

Are you a Victim of any of these 9 problems?

1. Process vapour contamination?
2. Process vapour escaping to atmosphere leading to product losses?
3. Low and inconsistent vacuum?
4. High vacuum pump utility and treatment cost? (Oil/Water)
5. Low product yield? High processing cost?
6. High batch cycle times, more time to generate desired vacuum levels?
7. High temperature to carry out distillation?
8. Vacuum fluctuation during distillation process?
9. Harassment of pollution control board?

CNSL Resin Manufacturing Process Owners make while making Vacuum Pump Selection !!!

1. Wrong sizing of the vacuum pump
2. Mismatch in pumping speeds of the booster and backup vacuum pump leading to overheating of machines.
3. No prefilter to backup pump leading to process particulate carryover and choking of the backup pump
4. No installation of intermediate condenser to trap and condense process vapours at a higher pressure.
5. Choice of the right capacity of the booster pump to deliver consistent and high pumping speeds to process for consistent deep vacuum
6. Right instrumentation giving appropriate feedback at the right time.
7. Common integrated electric control panel with PLC logic to control combination vacuum pumps simultaneously based on closed loop feedback.

1. 100% Dry Vacuum Pumping, no external sealing fluid contamination
2. 100% Product purity intact
3. 100% Process vapour recovery post vacuum pump possible
4. No Steam, No Oil, No Water - thus no external contamination. Lowest cost of utility.
5. Rugged & Robust design for harsh tropical environment reducing downtimes by more than 27% over other similar technologies
6. Gen III (2021) patented design hybrid pitch screw having high volumetric efficiency leading to consistent vacuum levels without any fluctuation.
   • High product yield.
   • High product quality.
7. Upto 33% more power efficient as compared to conventional similar sized vacuum pumps. Lowest (watt/m3) specific power consumption ratio.
8. Top suction, bottom discharge design best suited for pumping high vapour which has tendency to condense within the pump.
9. Upto 37% reduction in batch time when compared to Wet Pumps
10. Upto 52% reduction in operating cost as compared to other conventional vacuum pump technologies.

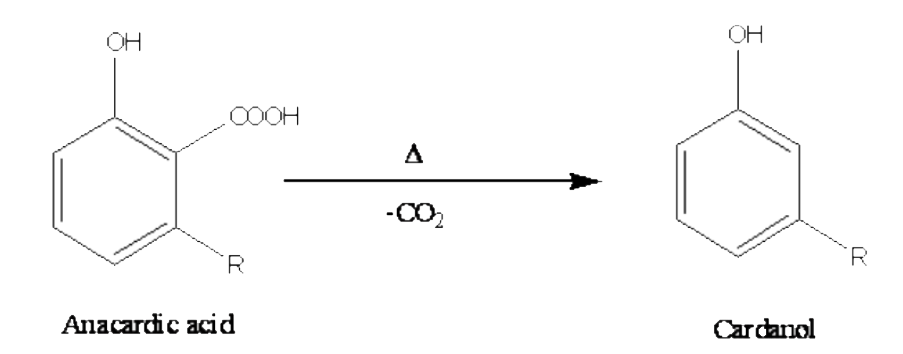

Cashew Nut Shell Liquid (CNSL) or Cashew Oil or Cashew Nut Shell Oil is a dark reddish brown viscous liquid, extracted from a soft honeycomb structure inside the cashew shell. It is a natural and renewable biomaterial. Thus, it offers much advantage over synthetics. CNSL is often considered as cost effective and better modern materials for unsaturated phenols. Cardanol is basically a monohydroxy phenol with a long carbon chain in the meta-position. It has the potential as a substitute for phenol in resin phenolic-based chemical products. Main Process of Cardanol extraction from Natural CNSL comprises the conversion of natural CNSL into technical CNSL in which anacardia acid is de-carboxylate into cardanol.

Cardanol is distilled from Cashew Nut Shell Liquid. Cardanol can be manufactured in batch or continuous distillation process. A batch of Decarboxylated CNSL is heated to 250°C under high Vacuum in a reactor. After removal of initial impurities such as water and other low boilers Cardanol distillation begins and the vapour that is getting evaporated under vacuum is collected in a condenser and condensed with the right utilities and collected in receiver.

Technical CNSL is obtained mainly from cardanol (60–65%), cardol (15–20%), polymeric material (10%), and traces of methyl cardol. Cardanol is sent to distillation for further purification.

Vacuum plays an important role in the evaporation process. Now days, water ring pump (WRP) is used in this process but these vacuum systems require lot of water as sealant fluid that circulate inside pump casing and in every minute process carry over contaminates the sealant water that’s why there is need of change of sealant water at regular interval of time. The treatment of waste water generated from WRP becomes difficult to treat and that makes the process less economical.

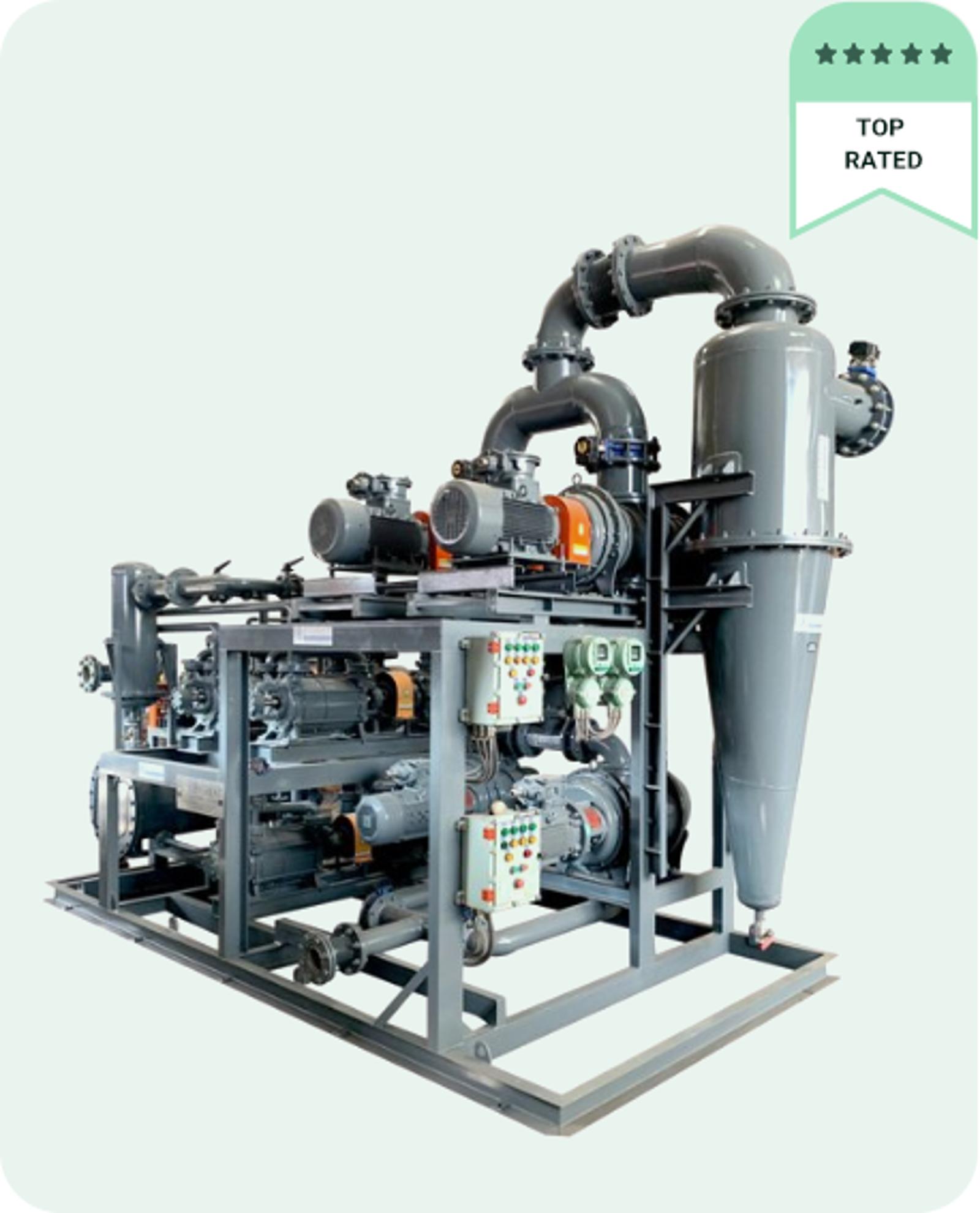

Everest Dry Screw vacuum pump has been used successfully in this process, No water contamination occurs as no sealing fluid is required that makes the process economical and keeps the environment clean. Automated scheduled flushing cycles are performed with suitable solvent at regular intervals to make the system maintenance free, hence adding value to the complete supply chain.
